The fuselage of PLT-600 aircraft is made of full carbon fiber.it has the function of high strength,light weight,attractive appearance,strong maneuverability,easy and flexible manipulation,strong loading ability,convenient and efficient to carry.It is widely used in the industry and fields of aerial video,aerial reconnaissance,anti-terrorist,obtain the evidence,geological exploration,remote sensing surveying and mapping,communication relay,environment protection,meteorological sounding,disaster monitoring,aerial surveying and public security fire-fighting.
1.The more extensive load application
Mount capability can meet customers’ demand for large loading ability, beyond the most equivalent load capacity and endurance.It is widely used in the industry and fields of aerial video,aerial reconnaissance,anti-terrorist,obtain the evidence,geological exploration,remote sensing surveying and mapping,communication relay,aerial surveying and public security fire-fighting.

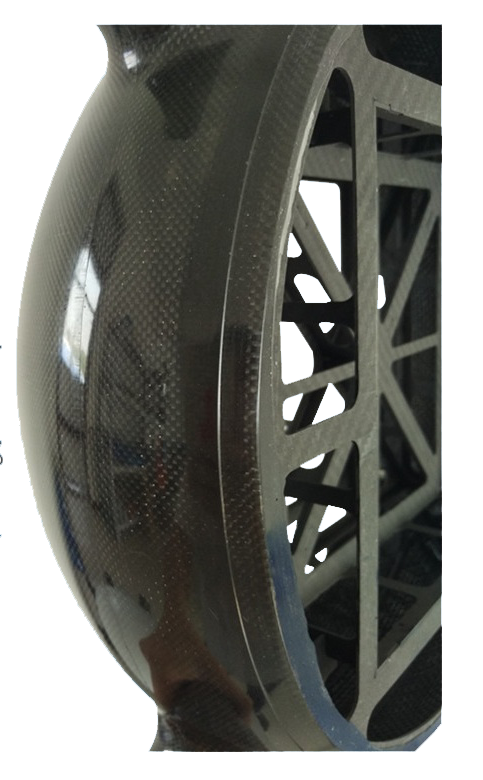

2.Exquisite carbon fiber processing technology
The carbon fiber technology of the full carbon fiber is different from most of the process,most of the used materials are imported.Each component is handcrafted,its advantage is to ensure the maximum strength and attractive appearance,while lighter weight than most other processes.The weight of the classic hexacopter aircraft is only 3.5kg.

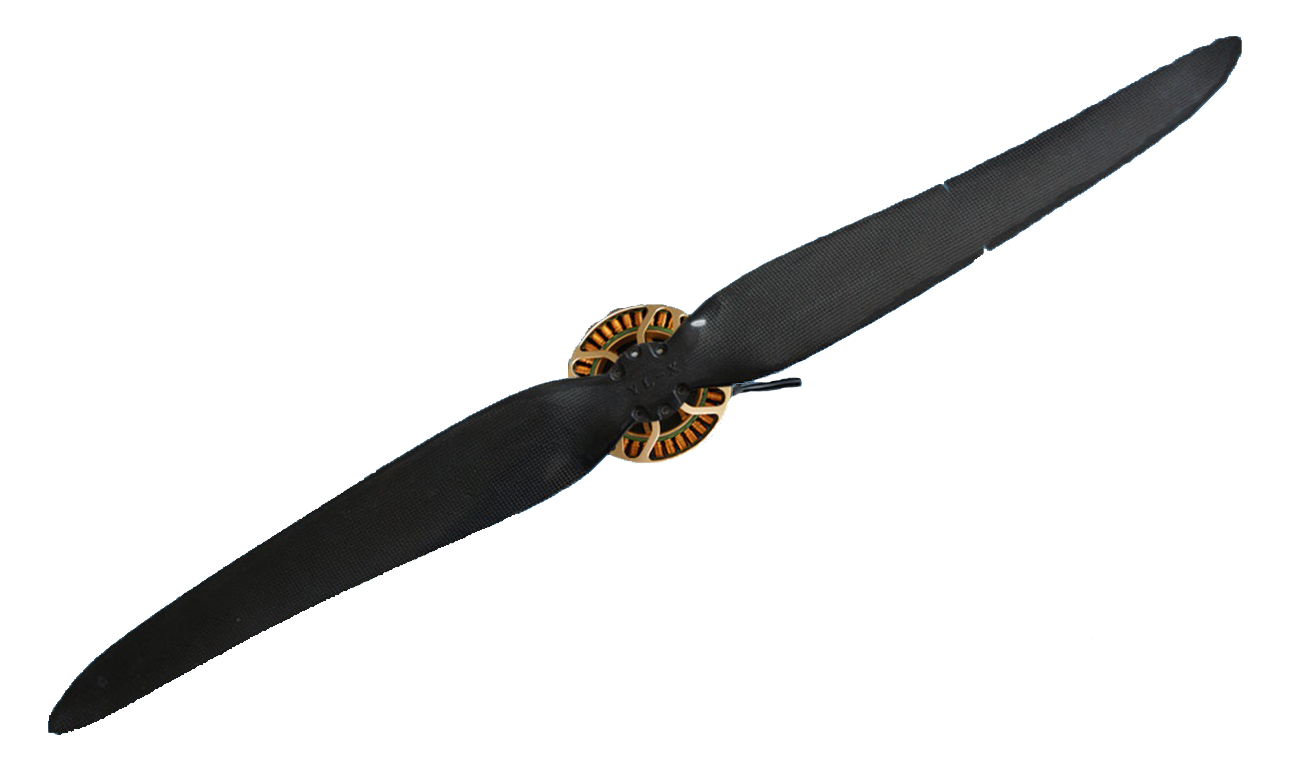

3.Efficient and stable power system
28.6-inch full carbon fiber hollow paddle,customizable mute efficient brushless motor.The efficiency reaches the top level of domestic UAV power system.Each paddle and motor are elaborately adjusted and tested,to give you a safe,reliable and comfortable flight status.
4.Reliable unmanned flight controller
PLT-600 unmanned flight controller was developed after a lot of practice flying,the security performance is very reliable.The GPS satellite navigation and fast navigation speed reflect its powerful function.The quantity of the stars can be searched more than 18 in open area. The controller supports the conventional functions such as OSD,brushless PTZ,ground station etc.Moreover,the aircraft is equipped with black box,multi-functional.
Technical parameter
Max take-off weight | 20KG |
Standard Load | 3KG |
Max load | 5KG |
Cruising Speed | 5 ~ 10m/s Adjustable |
Maximum wind resistance | 10m/s |
Altitude ceiling | 5000m |
Flight radius | 5KM |
Communication distance | 5KM |
Climbing rate | 5m/s |
Idling loiter time | 40 ~ 70minutes |
Take-off and landing | Vertical take-off and landing |
Operating temperature | -20°~ +50° |
Platform parameters
Dimension(mm) | Length 2250*Width 2250* Height 600 |
Wheel base(mm) | 1600 |
Package Size(mm) | 750*650*420 |
Rotor-wing Size | 28.6 inches full carbon fiber hollow paddle |
Motor | LY8108-110KV-175KVCustomizable exterior rotor brushless motor LY8115-100KV-150KVCustomizable exterior rotor brushless motor |
Arm structure | Detachable |
Power battery | 6S1P * 3 * 22000mAH |
Swatches | European standard swatches(customization) |
